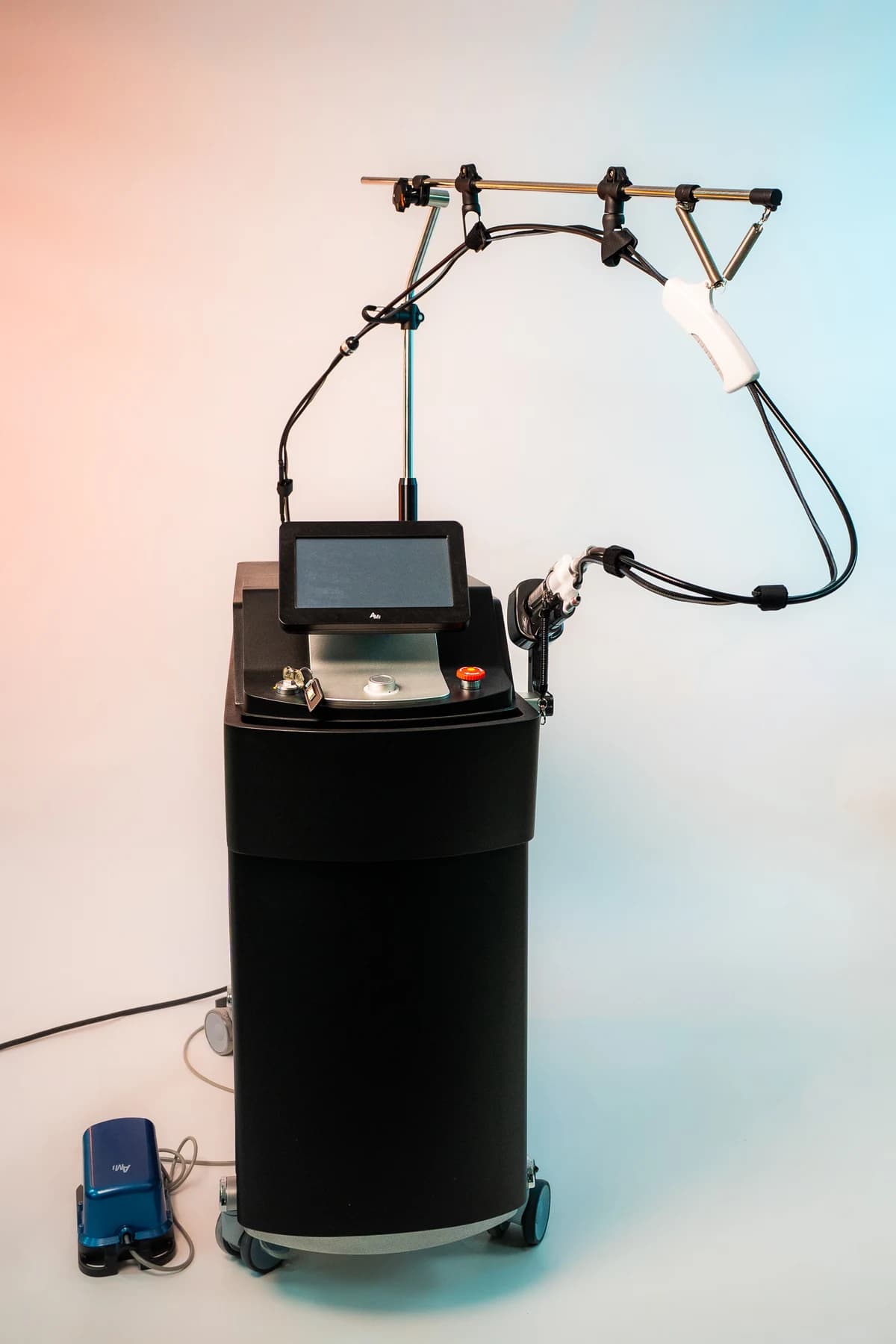

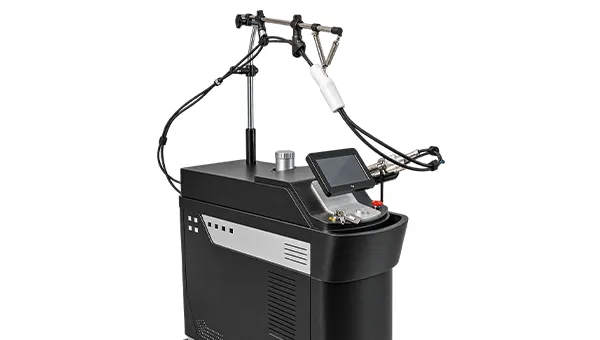

AMI REX-AN DUAL

The REX-AN DUAL, developed by AMI in South Korea, is a premium long-pulsed laser platform combining 755nm Alexandrite and 1064nm Nd:YAG wavelengths. Engineered for clinical versatility, it features simultaneous dual-wavelength emission to target hairs of varying thicknesses, depths, and colors in a single pass. With both Zoom and Cartridge handpieces and dual Gas/Air cooling with high-capacity 900g refillable canisters supporting up to 25,000 shots, REX-AN DUAL delivers unmatched clinical safety, patient comfort, and operational efficiency.

• Simultaneous Dual Wavelength (755nm & 1064nm) emission for multi-depth follicular destruction
• Top-Hat Beam Profile providing uniform energy distribution without thermal hot spots
• Two interchangeable Handpiece options: Zoom Handpiece (3–22mm) and Cartridge Handpiece
• Dual Cooling System: Long-lasting Cryo-Gas (900g, 25,000 shots) & external Air cooling
• High repetition rate up to 7Hz (3Hz rapid clinical hair removal protocol)
• High energy output: Max 90J @ 1064nm and Max 60J @ 755nm with fluence up to 1273 J/cm²
• 532nm aiming beam (<5mW) for sub-millimeter precision targeting

Laser Medium

Nd:YAG (1064 nm) & Alexandrite (755 nm)

Max Energy

90 J @ 1064 nm / 60 J @ 755 nm

Max Fluence

1273 J/cm² @ 1064 nm / 849 J/cm² @ 755 nm

Pulse Duration

0.5 – 100 ms

Spot Size

3, 5, 7, 10, 12, 15, 18, 20, 22 mm (Zoom / Cartridge)

Repetition Rate

1 – 7 Hz

Cooling System

Cryo-Gas (900g, 25,000 shots) & Air Cooling (CRYO-ZET compatible)

Aiming Beam

532 nm (< 5 mW)

Dimensions & Weight

920 × 420 × 970 mm, 105 kg

• Hair Removal (Dark/light, thick/fine hair across Fitzpatrick skin types I–VI)
• Pigmented Lesions (Freckles, seborrheic keratosis, epidermal/dermal dyschromia)
• Vascular Lesions (Telangiectasia, spider veins, facial flushing, rosacea, hemangioma, nevus flammeus)
• Dermal Rejuvenation & Skin Laxity Improvement
• Inflammatory Acne Management

• Treats all skin phototypes and hair colors with zero downtime
• Significantly reduced treatment time with 3Hz continuous emission
• Lowest consumable running cost with large-capacity 900g refillable cryo canister
• Consistent, predictable clinical endpoints with uniform top-hat energy delivery
