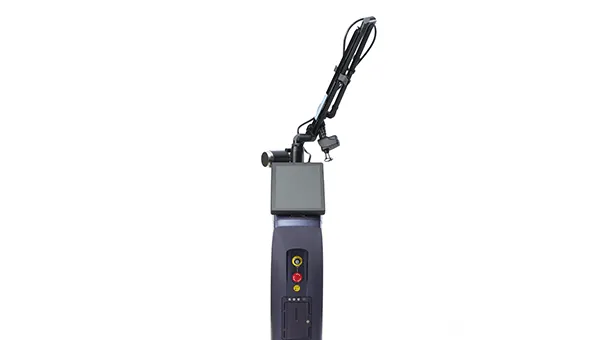

BVLASER Fractional CO2

The BVLASER Fractional CO2 Laser delivers precise 10,600nm micro-thermal treatment zones (MTZ) to stimulate deep neocollagenesis while leaving surrounding tissue intact for rapid re-epithelialization. Equipped with an advanced galvano-scanner offering multiple geometric scan shapes and an ultra-pulse surgical mode, it represents the gold standard for severe acne scarring, rhytids, photo-aged skin rejuvenation, and surgical excision.

• 10,600nm High-Purity CO2 Laser Tube with stable RF excitation
• Advanced Galvano-Scanner with variable shapes (Square, Circle, Triangle, Hexagon, Ellipse, Line)
• Triple Operating Modes: Fractional Scanning, Ultra-Pulse Surgical, and Rejuvenation mode
• Adjustable MTZ density, dot pitch, and pulse energy for tailored ablation depth
• 7-joint balanced articulated optical arm with 360° rotational freedom
• Red 635nm diode aiming beam for accurate micro-beam positioning

Wavelength

10,600 nm (Fractional CO2)

Output Power

40 W / 60 W (RF Metal Tube)

Scan Patterns

Square, Rectangle, Circle, Triangle, Hexagon, Ellipse, Line

Scan Size

0.1 × 0.1 mm to 20 × 20 mm (Continuous adjust)

Pulse Energy

1 mJ – 100 mJ per dot

Pulse Duration

0.1 – 10 ms

Beam Delivery

7-Joint Articulated Optical Arm

Aiming Beam

635 nm Diode Laser (< 5 mW)

• Atrophic and Hypertrophic Acne Scars
• Surgical and Traumatic Scars
• Deep Periorbital and Perioral Wrinkles
• Full Face Skin Resurfacing and Pore Reduction
• Benign Epidermal Lesions (Syringoma, seborrheic keratosis, warts, moles)
• Striae Distensae (Stretch Marks)

• Dramatic single-session dermal remodeling with controlled fractional thermal injury
• Fast patient recovery times with micro-fractional spacing
• Versatile clinical utility spanning medical dermatology, surgical excision, and aesthetics
